Slope failure analysis in Fredericton demands strict adherence to the National Building Code of Canada (NBCC 2020) and ASTM D6528-17 for direct shear testing. Fredericton sits on the St. Lawrence Lowlands, where glacial till and clay-rich soils dominate the subsurface. These materials exhibit low permeability and high plasticity, conditions that can trigger progressive failure after heavy rainfall or rapid snowmelt. Our team applies limit equilibrium methods, including Bishop simplified and Spencer's approach, to calculate factor of safety. We also incorporate instrumentation geotecnica to monitor pore pressure changes in real time, which is critical for slopes near the Saint John River.
Effective slope failure analysis combines limit equilibrium methods with site-specific groundwater data to achieve factor of safety above 1.5.
Technical details of the service in Fredericton
- Topographic survey and borehole logging to define stratigraphy.
- Laboratory testing for cohesion and friction angle via direct shear and triaxial.
- Probabilistic analysis to account for variability in soil strength.
Typical technical challenges in Fredericton
A recent highway embankment near Route 8 in Fredericton showed tension cracks after a wet winter. The slope, composed of silty clay with interbedded sand lenses, had a calculated factor of safety of 1.2. Without intervention, a progressive failure could have closed the road for weeks. We re-analyzed the slope using a coupled groundwater-stability model and recommended a toe berm with subsurface drainage. That avoided a full reconstruction and kept traffic moving through the spring thaw.
Our services
Our slope failure analysis services cover the full range of needs in Fredericton, from small residential lots to large infrastructure projects.
Limit Equilibrium Analysis
We compute factor of safety for circular and non-circular failure surfaces using Bishop simplified, Janbu, and Morgenstern-Price methods.

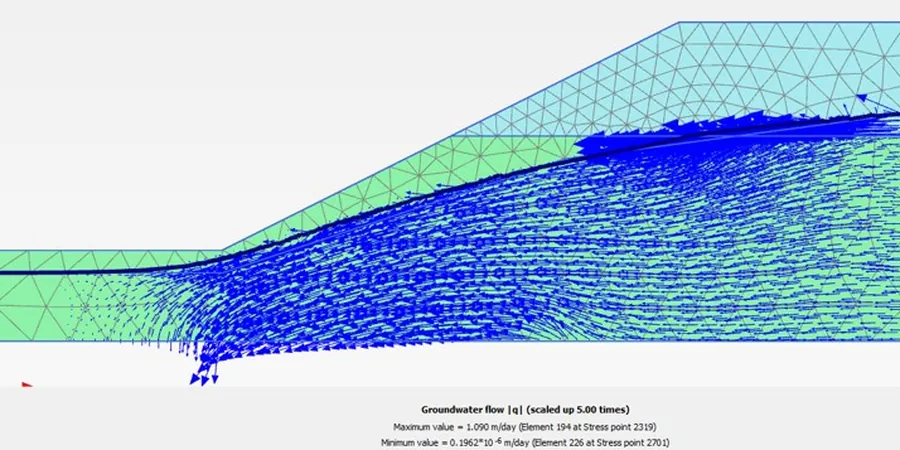

Finite Element Modeling
Advanced 2D and 3D models simulate stress-strain behavior, progressive failure, and seismic loading for critical slopes.
Groundwater Assessment
Piezometer installation and monitoring to measure pore pressure profiles; data feeds directly into stability calculations.
Remedial Design
We design soil nails, shotcrete, drainage blankets, and retaining walls to increase factor of safety where needed.
Frequently asked questions
What does slope failure analysis cost in Fredericton?
A typical slope stability study for a residential lot or small commercial site ranges from CA$1,040 to CA$3,700. The final price depends on slope height, access constraints, and number of boreholes required. Contact us for a quote tailored to your project.
How long does a slope failure analysis take?
Most projects complete within 2 to 4 weeks. Fieldwork (boreholes, piezometer installation) takes 1 to 3 days; lab testing adds another week; analysis and reporting require 5 to 10 business days.
What soil conditions in Fredericton cause slope failures?
Glacial till with high clay content and low permeability is common. After heavy rain or snowmelt, pore pressure rises in the till, reducing effective stress and triggering shallow or deep-seated slides. Interbedded sand lenses can also act as drainage pathways that concentrate water.
Do I need a slope stability study for a small retaining wall?
Yes, if the wall exceeds 1.5 m in retained height or supports a surcharge (e.g., driveway, building). NBCC requires a minimum factor of safety of 1.5, which a geotechnical analysis verifies. Even small walls can fail if drainage is poor or soil strength is overestimated.
