Many contractors in Fredericton assume that shallow foundations can handle any load if you just dig deep enough into the till. That assumption fails when you hit the soft alluvial deposits along the Saint John River floodplain. Without proper ground improvement, bearing capacity drops and differential settlement becomes a real headache. Stone column design offers a reliable solution for these conditions, densifying the soil and adding drainage paths. Before specifying columns, we always run a consolidation analysis to confirm settlement rates under working loads. That step avoids costly overdesign or unexpected post-construction movement.
Stone column design cuts differential settlement in soft Fredericton clays by over 60% compared to untreated ground, based on local project records.
Technical details of the service in Fredericton
- Undrained shear strength from vane shear or triaxial tests
- Natural moisture content and Atterberg limits to gauge compressibility
- Groundwater depth — the water table sits within 1.5 m of surface in many downtown lots
Typical technical challenges in Fredericton
Upper Fredericton neighborhoods like Marysville sit on glacial till with decent bearing capacity, while areas near the river — such as downtown and parts of the Southside — rest on compressible clay and silt. Stone column design in the latter zones must account for lateral bulging and potential liquefaction during a seismic event. The NBCC 2020 assigns a seismic hazard value of 0.15g for Fredericton, enough to trigger cyclic softening in loose saturated sands. We always model the column group under dynamic loading using equivalent-linear analysis, not just static bearing checks.
Our services
We deliver two specialized stone column design services adapted to Fredericton's subsurface conditions.

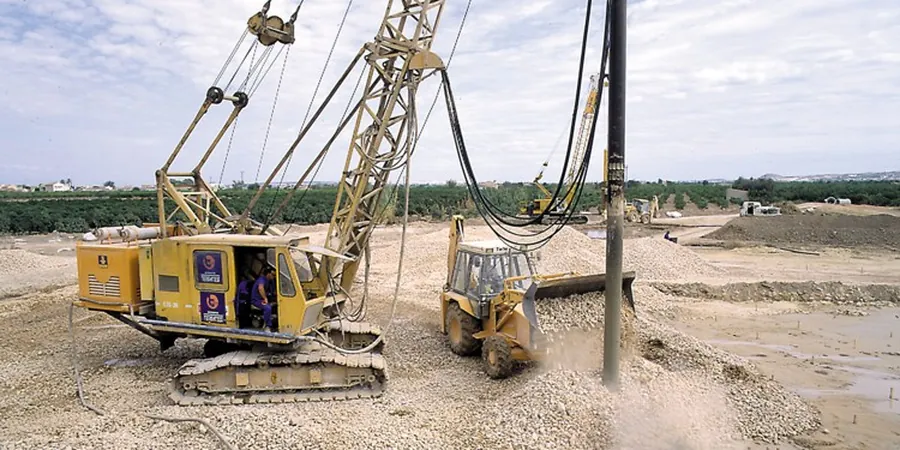

Vibro-Replacement Stone Columns
Wet or dry vibro-replacement for soft cohesive soils and loose sands. Suitable for sites with high water table; we achieve column diameters up to 1.2 m and density gains exceeding 70% relative compaction in the column material.
Stone Column Design with Settlement Analysis
Detailed numerical modeling using PLAXIS 2D/3D and Priebe's method to predict total and differential settlement. We provide column layout plans, material specs, and QA/QC testing protocols for every Fredericton project.
Frequently asked questions
How deep can stone columns be installed in Fredericton?
Typical depths range from 6 to 18 meters, depending on the thickness of soft strata. In downtown Fredericton we have installed columns to 14 m to reach the dense glacial till layer below the river deposits.
Do stone columns help with liquefaction risk?
Yes. Dense stone columns increase the relative density of surrounding sand through vibration and displacement, reducing liquefaction potential. They also act as vertical drains to dissipate excess pore pressure during an earthquake.
What is the typical cost range for stone column design in Fredericton?
The design and supervision fee typically falls between CA$2.230 and CA$6.960, depending on project complexity, number of columns, and required testing. This includes site visits and a final design report.
Can stone columns support heavy highway embankments?
Absolutely. We have designed column groups under approach embankments that support fill heights up to 8 meters. The columns reduce post-construction settlement to less than 50 mm and improve slope stability through shear reinforcement.
